Professional color measurement
US$16,995.00
The SD-900B is a high-precision benchtop spectrophotometer for reflectance, transmittance and haze measurement. Its dual LED/UV plus xenon light-source system supports demanding color-control workflows, including improved recognition of fluorescent samples according to the supplied specification.
The SD-900B is a high-precision benchtop grating spectrophotometer for demanding laboratory and production color-control workflows. It combines reflectance, transmittance and haze measurement with d/8 reflectance and d/0 transmission geometry, simultaneous SCI/SCE measurement, UV-inclusive and UV-excluded modes, and a 360–780 nm spectral range.
The SD-900B combines full-spectrum LED/UV illumination with a 360–780 nm xenon lamp. This dual-light-source architecture is the instrument’s principal distinction and is specifically positioned by the supplied material for improved recognition when testing fluorescent samples. It supports UV-inclusive and UV-excluded workflows plus 400 nm and 420 nm cut-off sources.
The SD-900B’s concave-grating optical system uses a 256-element dual-array CMOS image sensor and a 154 mm integrating sphere to support a wide range of solid, transparent and translucent samples. d/8 reflectance measurement supports SCI and SCE measurement. d/0 transmission measurement also supports SCI/SCE, while haze measurement is specified with reference to ASTM D1003.

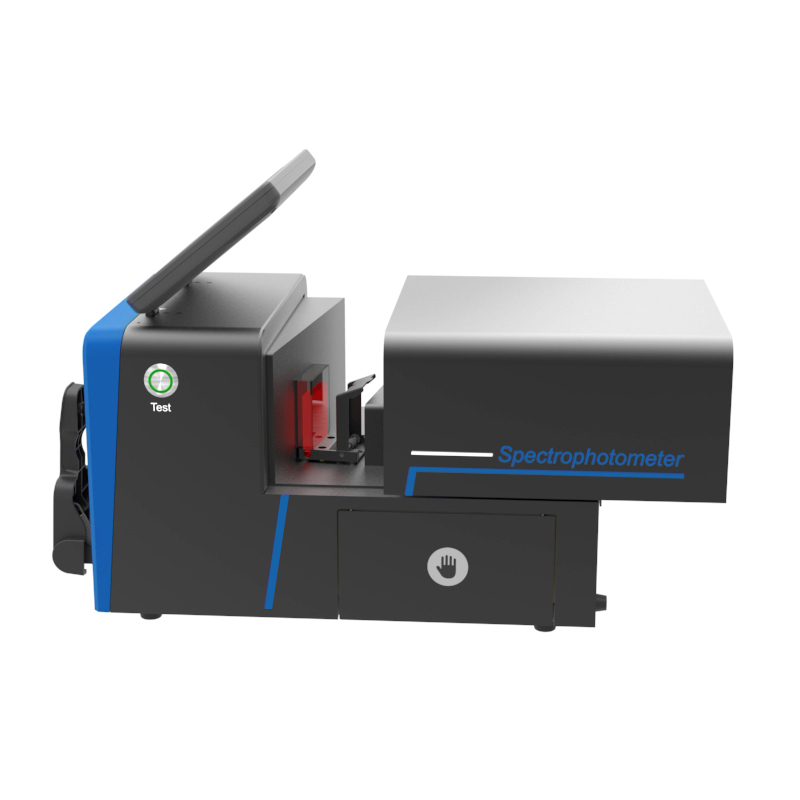

Four reflective aperture configurations support different sample sizes, and automatic aperture recognition helps reduce configuration errors. The open transmission chamber accepts samples up to 54 mm thick, with unrestricted sample height according to the supplied specification.

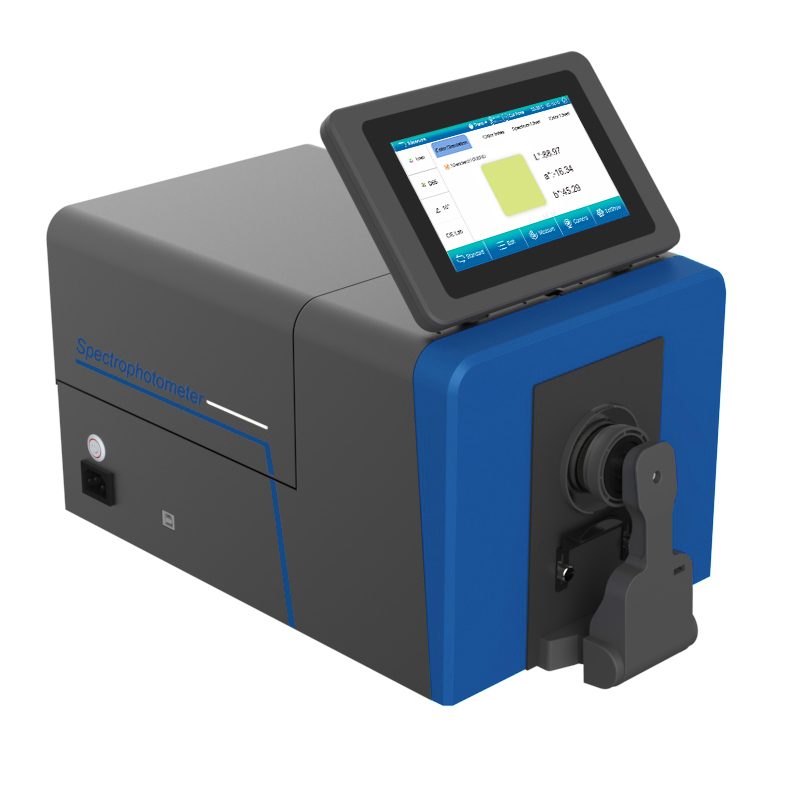

A 7-inch independently rotatable touchscreen gives direct access to spectral curves, color values, color differences, PASS/FAIL assessment, haze and liquid-color measurement. Real-time camera positioning helps centre the sample and verify the measurement area. Automatic temperature and humidity compensation is intended to improve measurement consistency as conditions change.

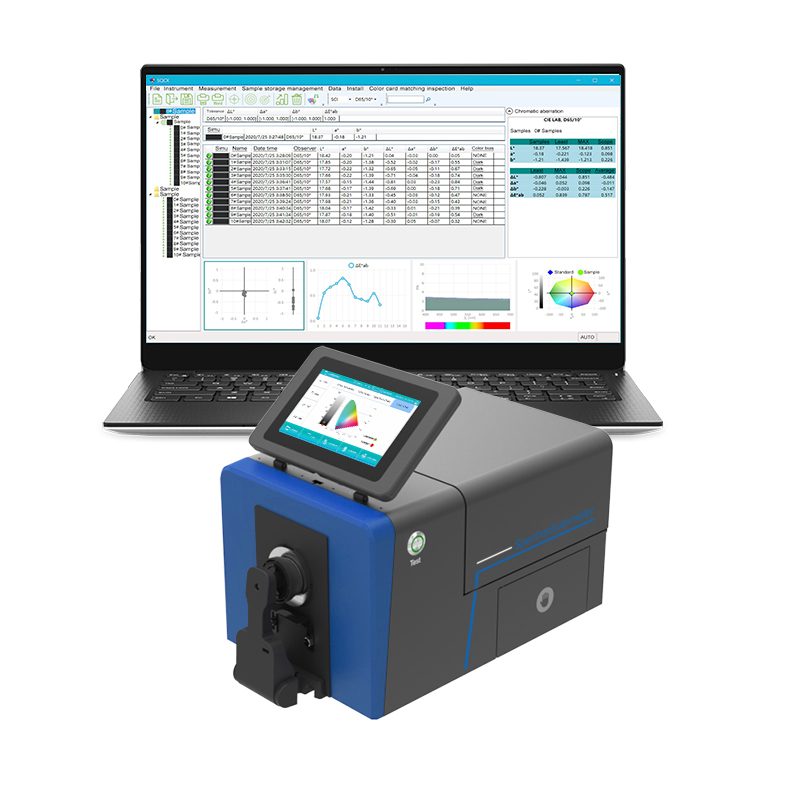

USB and Bluetooth 5.0 connectivity, 32 GB onboard storage, audit-trail support and PC/mobile software options extend the system into color-data management, report generation and broader quality workflows. Software functions and platform availability may vary by supplied configuration.
| Model | TS8560 — LED light source + xenon lamp |
|---|---|
| Measurement modes | Reflectance, transmittance and haze |
| Reflectance optical geometry | d/8 — diffuse illumination, 8° viewing; SCI/SCE; UV included / UV excluded |
| Transmittance optical geometry | d/0 — diffuse illumination, 0° viewing; SCI/SCE; UV included / UV excluded |
| Haze | Supports haze measurement to ASTM D1003 |
| Integrating sphere | Φ154 mm |
| Light source | 360–780 nm combined LED source including UV, 400 nm and 420 nm cut-off sources, plus 360–780 nm xenon lamp |
| Spectrophotometric system | Concave grating |
| Sensor | 256-element dual-array CMOS image sensor |
| Wavelength range | 360–780 nm |
| Wavelength interval | 10 nm |
| Spectral bandwidth | 5 nm |
| Measured reflectance range | 0–200% |
| Reflectance resolution | 0.01 |
| Reflective apertures | XLAV: Φ25.4 / Φ30 mm; LAV: Φ15 / Φ18 mm; MAV: Φ8 / Φ10 mm; SAV: Φ4 / Φ6 mm |
| Transmissive aperture | Φ25.4 mm; sample height unrestricted and thickness ≤54 mm according to supplied specification |
| Color spaces | CIE LAB, XYZ, Yxy, LCh, CIE LUV, Munsell, s-RGB, HunterLab, βxy and DIN Lab99 |
| Color-difference formulas | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc (2:1), ΔE*cmc (1:1), ΔE*00, DIN ΔE99, ΔE (Hunter) and ΔE*CH |
| Observer angle | 2° / 10° |
| Illuminants | 41 stated illuminants, including daylight, fluorescent and LED sources; some functions require PC software |
| Displayed data | Spectral graph/data; sample chromaticity; color-difference values/graph; chromaticity map; color simulation; PASS/FAIL; color direction; color assessment; haze; liquid chromaticity |
| Measurement time | Approx. 2.0 s; approximately 4 s when measuring SCI and SCE simultaneously |
| Repeatability — colorimetric | Φ25.4 mm / SCI: ΔE*ab within 0.01 under LED illumination, based on the average standard deviation of 30 white-calibration-board measurements at 5-second intervals after instrument warm-up and calibration |
| Repeatability — spectral | Spectral reflectance / transmittance ≤ 0.1% |
| Inter-instrument agreement | Φ25.4 mm / SCI: ΔE*ab within 0.1, average of 12 BCRA Series II color tiles |
| Dimensions | 440 × 248 × 283 mm (L × W × H) |
| Weight | Approx. 13.5 kg |
| Power | 24 V DC, 3 A power adapter |
| Light-source life | More than 3 million measurements / 5 years |
| Display | 7-inch independently rotatable touchscreen |
| Data interface | USB; Bluetooth 5.0 |
| Data storage | 32 GB; more than 100,000 records |
| Audit trail | Supported |
| Operating environment | 0–40 °C (32–104 °F) |
| Storage environment | −20–50 °C (−4–122 °F) |
Standard accessories: power adapter, user guide, USB flash drive containing quality-management software, data/USB cable, standard calibration board, black calibration box, transmission black baffle, sample holder, 25.4 mm, 15 mm, 8 mm and 4 mm apertures, transmission test fixture, cuvette and instrument positioning fixture.

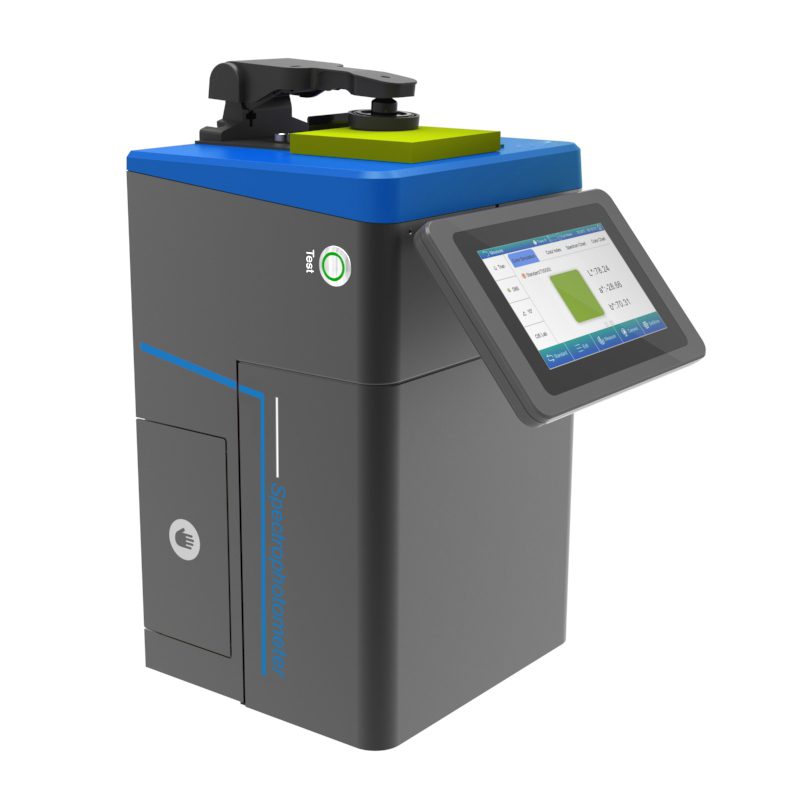

Optional accessories: inverted/hand stand, culture/Petri dish, micro-aperture 4 mm transmission fixture assembly and film fixture.
Its principal distinction is the combined full-spectrum LED/UV and xenon light-source system. The supplied material specifically positions this configuration for improved recognition when measuring fluorescent samples.
It supports spectral color measurement in reflectance and transmittance modes, together with haze measurement and a broad range of derived color and appearance indices.
Yes. SCI and SCE are specified for both reflectance and transmittance measurement, including simultaneous workflows.
Yes. Its d/0 transmission chamber is specified for samples up to 54 mm thick, with unrestricted sample height.
The supplied specification states repeatability within ΔE*ab 0.01 using the 25.4 mm aperture in SCI mode under a defined LED, warm-up, calibration and 30-measurement test.
Technical specifications are indicative and subject to the actual product supplied.
