Professional color measurement
US$5,995.00
High-precision portable UV grating spectrophotometer with d/8 geometry, SCI/SCE, UV-included and UV-excluded measurement, switchable 8 mm and 4 mm apertures, camera-assisted positioning and USB/Bluetooth data transfer.

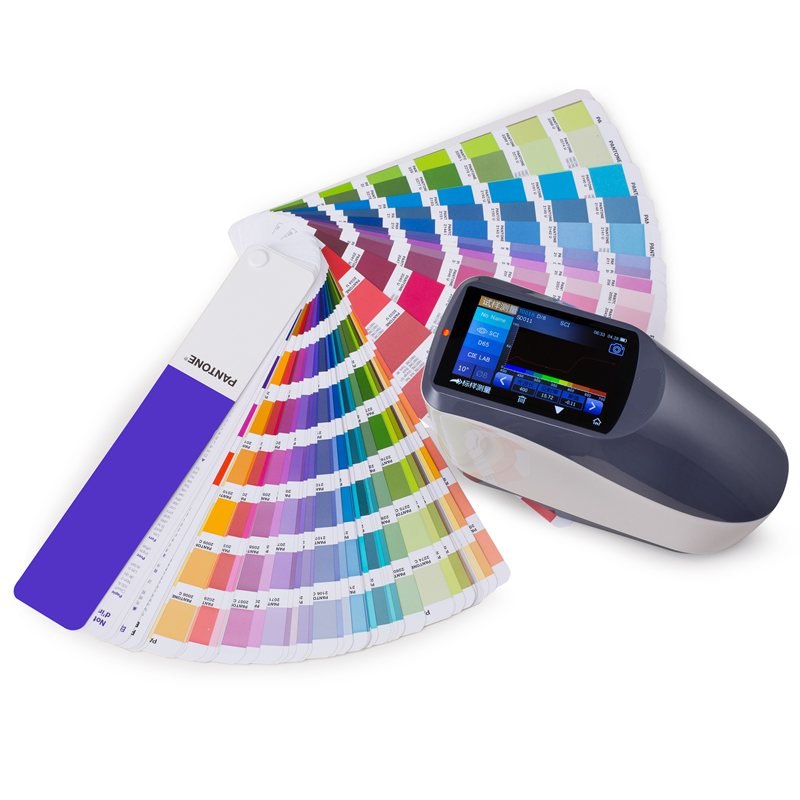

The SD-700 is a high-precision portable grating spectrophotometer designed for professional color measurement, color matching and quality control. Its d/8 optical system supports both specular-component-included (SCI) and specular-component-excluded (SCE) measurement, helping teams evaluate intrinsic color as well as the influence of surface appearance.
Combined LED and UV illumination supports measurement with UV included or excluded. This makes the instrument suitable for conventional color work and for samples whose appearance is affected by fluorescence or optical brighteners. Switchable 8 mm and 4 mm measurement apertures, camera-assisted positioning, onboard storage and USB/Bluetooth communication support dependable use in laboratories, production environments and the field.
Some materials change appearance under UV energy because they contain fluorescent whitening agents, optical brighteners or UV-responsive colorants. The SD-700 lets users assess those samples with UV included or excluded, supporting more meaningful comparison of samples, standards and production output where this behaviour matters.

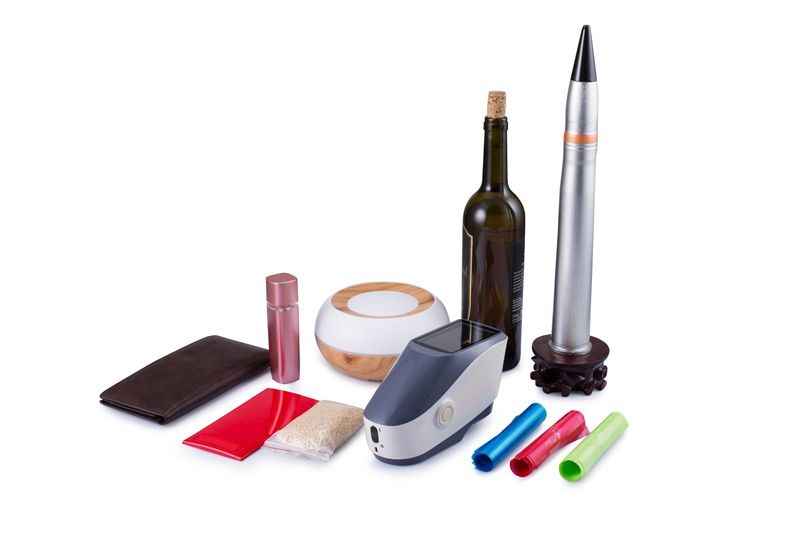

The SD-700 supports incoming-material checks, color matching, tolerance setting, finished-product verification and production quality control. Typical applications include plastics and polymers, paints and coatings, printing inks, textiles and garments, printing and dyeing, paper and printed materials, automotive components and finishes, electronics, cosmetics, food and packaging, medical-related manufacturing, and research or education laboratories.
| Model | SD-700 |
|---|---|
| Optical geometry | Reflectance: di:8°, de:8° — diffuse illumination, 8° viewing angle |
| Integrating sphere | 48 mm |
| Light source | Combined LED and UV light |
| Spectrophotometric system | Concave grating |
| Sensor | 256-element dual-array CMOS image sensor |
| Wavelength range | 400–700 nm |
| Wavelength interval | 10 nm |
| Spectral bandwidth | 10 nm |
| Measured reflectance range | 0–200% |
| Measurement apertures | Switchable 8 mm and 4 mm measurement apertures |
| Specular component | SCI and SCE |
| Color spaces | CIE L*a*b*, XYZ, Yxy, L*C*h, CIE L*u*v*, Hunter Lab |
| Color-difference formulas | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc (2:1), ΔE*cmc (1:1), ΔE*00, ΔE (Hunter) |
| Other color indices | Whiteness and yellowness indices, metamerism index, staining fastness, color fastness, color strength, opacity and 8° glossiness |
| Standard observer | 2° / 10° |
| Illuminants | A, C, D50, D55, D65, D75, F1–F12, TL83, TL84, U30, CWF and U35 |
| Displayed data | Spectral graph / values; sample chromaticity values; color-difference values / graph; PASS/FAIL result; color offset |
| Measurement time | 2.6 seconds |
| Repeatability | MAV/SCI: ΔE* ≤ 0.03 (manufacturer-stated) |
| Inter-instrument agreement | MAV/SCI: ΔE* ≤ 0.15 (manufacturer-stated) |
| Measurement modes | Single measurement; average measurement |
| Positioning | Camera viewfinder positioning |
| Battery | Rechargeable lithium-ion battery; manufacturer states 5,000 measurements within 8 hours |
| Dimensions | 184 × 77 × 105 mm (L × W × H) |
| Weight | 600 g |
| Light-source life | 5 years / more than 3 million measurements (manufacturer-stated) |
| Display | 3.5-inch TFT color LCD with capacitive touchscreen |
| Data interface | USB and Bluetooth |
| Data storage | 2,000 standard records; 20,000 sample records |
| Languages | English; Chinese |
| Operating environment | 0–40 °C; 0–85% RH, non-condensing; altitude below 2,000 m |
| Storage environment | −20–50 °C; 0–85% RH, non-condensing |

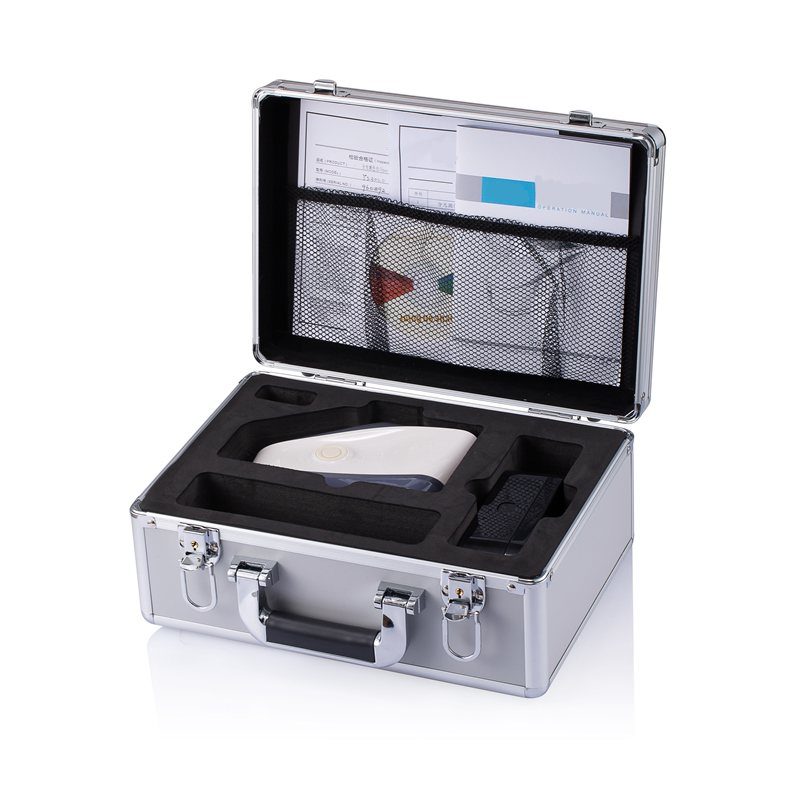

Standard accessories: power adapter, built-in rechargeable lithium-ion battery, user guide, PC software, white and black calibration components, and dust cover.
Optional accessories: micro printer, powder test box and universal test components.
The manufacturer states that the instrument conforms with or is designed with reference to CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724-1, ASTM E1164 and DIN 5033 Part 7. These are manufacturer-stated claims; independent certification should be confirmed where required.
It measures spectral reflectance from 400–700 nm and calculates a wide range of standard colorimetric values, color differences and related indices.
Yes. The SD-700 supports both specular-component-included (SCI) and specular-component-excluded (SCE) measurement.
Yes. Its combined LED and UV light source supports UV-included and UV-excluded measurement, making it suitable for workflows involving UV-responsive samples.
The instrument uses a switchable aperture system with 8 mm and 4 mm measurement apertures, supporting work across larger and smaller sample areas.
Yes. The SD-700 supports USB and Bluetooth communication and is supplied with PC software for further analysis.
It stores up to 2,000 standard records and 20,000 sample records.
Yes. The instrument weighs approximately 600 g and incorporates a rechargeable lithium-ion battery.
Specifications are manufacturer-stated and may change without notice.
