Professional color measurement
US$4,995.00

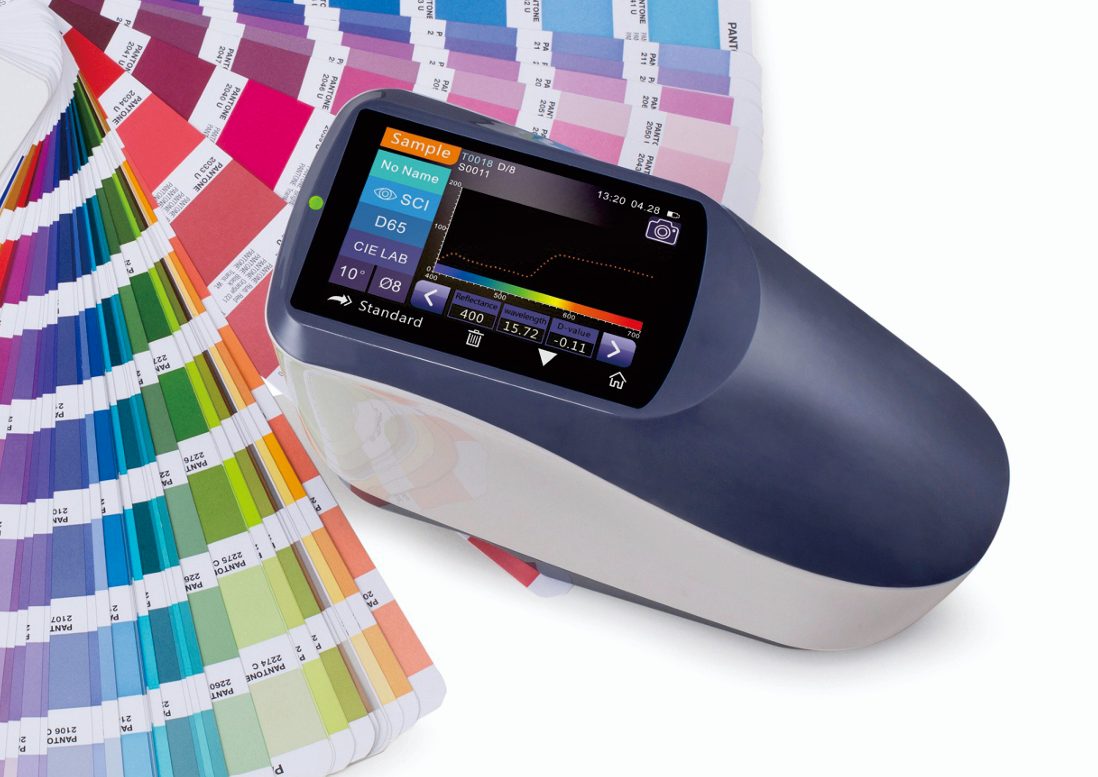

The SD-500 is a high-precision portable grating spectrophotometer for professional color measurement, color matching and quality control. It features d/8 geometry with simultaneous SCI/SCE measurement, a 400–700 nm spectral range, customisable aperture options and camera-assisted positioning.
The SD-500 is a high-precision portable grating spectrophotometer for professional color measurement, color matching and quality control. It combines d/8 optical geometry, simultaneous SCI/SCE measurement, a 400–700 nm spectral range and a choice of 8 mm, 4 mm or 1 × 3 mm measurement aperture configurations. Camera-assisted positioning, a 3.5-inch capacitive touchscreen, USB and Bluetooth 5.0 connectivity and extensive color-analysis functions make it suitable for laboratory, production and field measurement.
Designed for industrial color control where repeatability and consistent color data matter, the SD-500 measures spectral reflectance across the visible 400–700 nm range and calculates a broad set of standard colorimetric values. Its d/8 optical system measures both specular-component-included (SCI) and specular-component-excluded (SCE) data, allowing users to evaluate intrinsic color as well as the influence of surface appearance.
The concave-grating spectrophotometric system and 256-element dual-array CMOS image sensor provide detailed spectral measurement. The touchscreen displays spectral data, chromaticity values, color differences, PASS/FAIL results and color offset information, while the integrated camera assists precise positioning. USB and Bluetooth 5.0 support data transfer and software-based color workflows.
A configurable measurement aperture lets you specify the instrument for larger conventional sample areas or much smaller measurement areas, including a 1 × 3 mm option. This is especially useful for flat, small, narrow or difficult sample geometries. Select the required aperture configuration when ordering.
The SD-500 is intended for precision color measurement, color matching, color communication and production quality control.
| Model | SD-500 |
|---|---|
| Optical geometry | Reflectance: di:8°, de:8° — diffuse illumination, 8° viewing angle |
| Integrating sphere | Φ48 mm |
| Light source | Combined LED light source |
| Spectrophotometric system | Concave grating |
| Sensor | 256-element dual-array CMOS image sensor |
| Wavelength range | 400–700 nm |
| Wavelength interval | 10 nm |
| Spectral bandwidth | 10 nm |
| Measured reflectance range | 0–200% |
| Measurement aperture | Customisable single-aperture configuration: MAV Φ8 mm / Φ10 mm; SAV Φ4 mm / Φ5 mm; or 1 × 3 mm |
| Specular component | Simultaneous SCI / SCE |
| Color spaces | CIELAB, XYZ, Yxy, LCh, CIELUV, s-RGB, HunterLab, βxy, DIN Lab99, Munsell (C/2) |
| Color-difference formulas | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc (2:1), ΔE*cmc (1:1), ΔE*00, DIN ΔE99, ΔE (Hunter) |
| Other color indices | Spectral reflectance; whiteness and yellowness indices; metamerism index Mt; staining and color fastness; dye/tinting strength; opacity; 8° gloss; 555 index; blackness; CMYK color density; Tint; Munsell. Some functions require host software. |
| Observer angle | 2° / 10° |
| Illuminants | 41 illuminant types stated by the manufacturer, including D65, A, C, D50, D55, D75, F1–F12, CWF, DLF, TL83, TL84 and LED illuminants; some are available through host software or app. |
| Displayed data | Spectral graph/data; sample chromaticity values; color-difference values/graph; PASS/FAIL result; color offset |
| Measurement time | Approx. 1.0 s; approximately 2.6 s for simultaneous SCI/SCE measurement |
| Repeatability — spectral reflectance | MAV/SCI: standard deviation within 0.1%; within 0.2% across 400–700 nm |
| Repeatability — colorimetric | MAV/SCI: ΔE*ab ≤ 0.04 after calibration, based on the average of 30 white-board measurements at 5-second intervals |
| Inter-instrument agreement | MAV/SCI: ΔE*ab ≤ 0.2, stated as average across 12 BCRA Series II color tiles |
| Measurement modes | Single measurement; average measurement (2–99 measurements) |
| Positioning | Display-screen camera viewfinder |
| Battery | Rechargeable lithium-ion battery; stated 5,000 measurements within 8 hours |
| Dimensions | 184 × 77 × 105 mm (L × W × H) |
| Weight | Approx. 600 g |
| Light-source life | 5 years / more than 3 million measurements |
| Display | 3.5-inch TFT true-color LCD; capacitive touchscreen |
| Data interface | USB; Bluetooth 5.0 |
| Data storage | 1,000 standard records; 20,000 sample records; a record can contain SCI/SCE data |
| Languages | Simplified Chinese, Traditional Chinese, English, French, Portuguese, Russian, Spanish, Italian, German |
| Operating environment | 0–40 °C; 0–85% RH, non-condensing; altitude below 2,000 m |
| Storage environment | −20–50 °C; 0–85% RH, non-condensing |
Standard accessories: power adapter, data cable, built-in rechargeable lithium-ion battery, user guide, quality-management / PC software (manufacturer download), white and black calibration components, and protective dust cover.
Optional accessories: micro printer, powder test box and multifunctional test component.
It measures spectral reflectance from 400–700 nm and calculates a broad range of colorimetric values, color differences and specialised color indices.
Yes. The SD-500 supports simultaneous specular-component-included (SCI) and specular-component-excluded (SCE) measurement.
The platform is supplied with a selected aperture configuration. Manufacturer specifications list MAV Φ8/Φ10 mm, SAV Φ4/Φ5 mm and a 1 × 3 mm option. Confirm the required configuration when ordering.
UV measurement is not listed for the SD-500. Please contact us if this capability is required for your application.

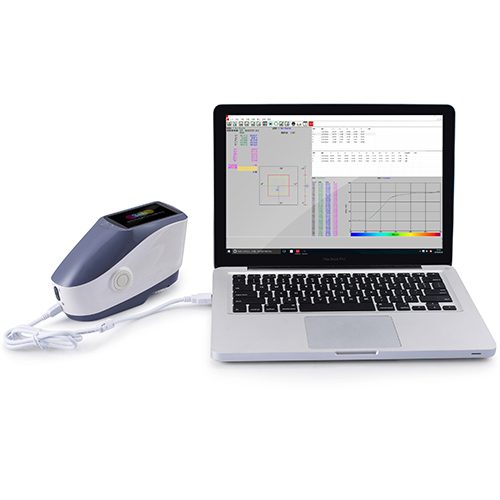

Yes. USB and Bluetooth 5.0 connectivity are supported, with software-based color analysis available.
The stated capacity is 1,000 standard records and 20,000 sample records.
Yes. The SD-500 weighs approximately 600 g and uses a rechargeable lithium-ion battery.
Technical specifications are indicative and subject to the actual product supplied.
